Gridstream® Connect Mobile Radio

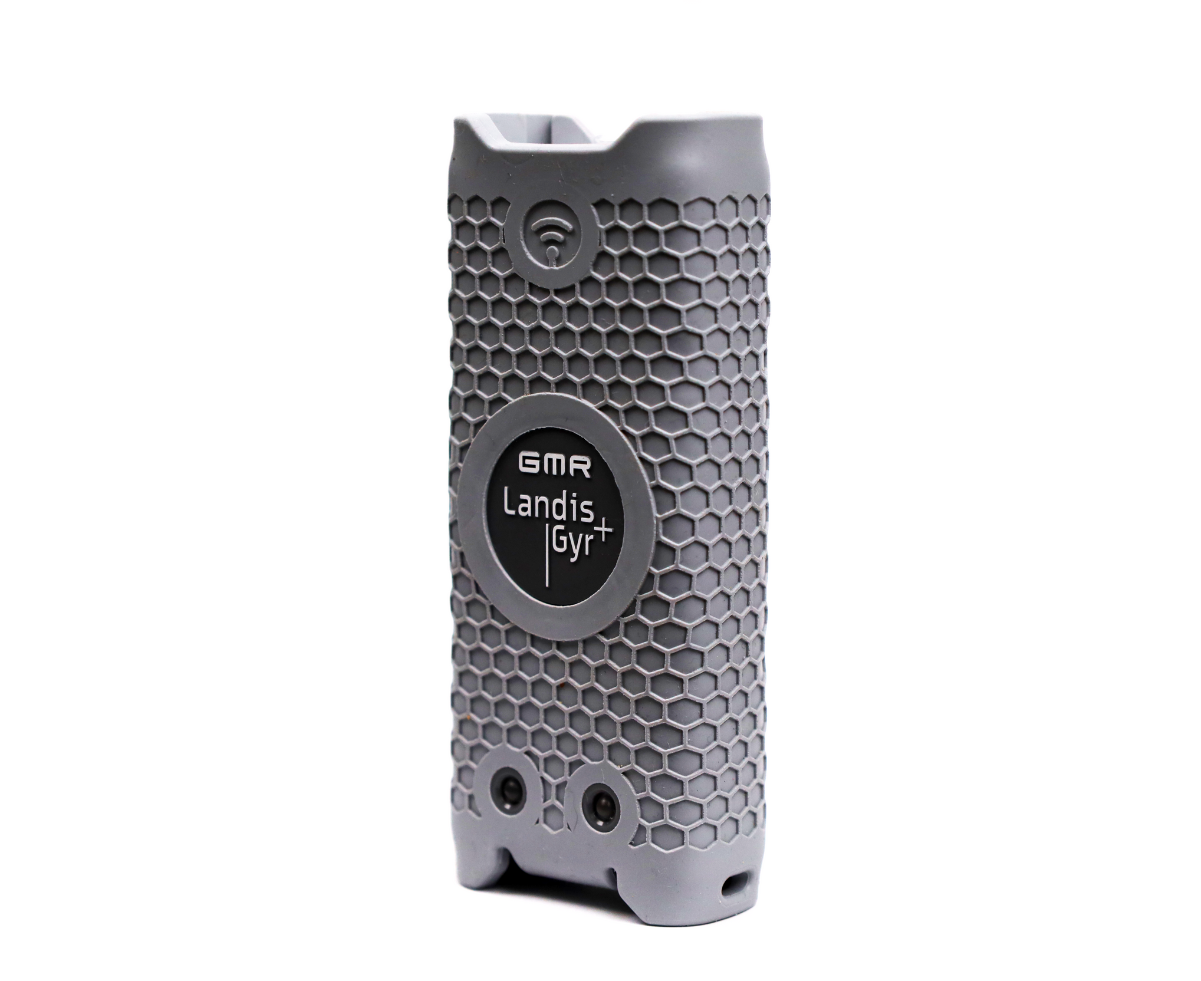

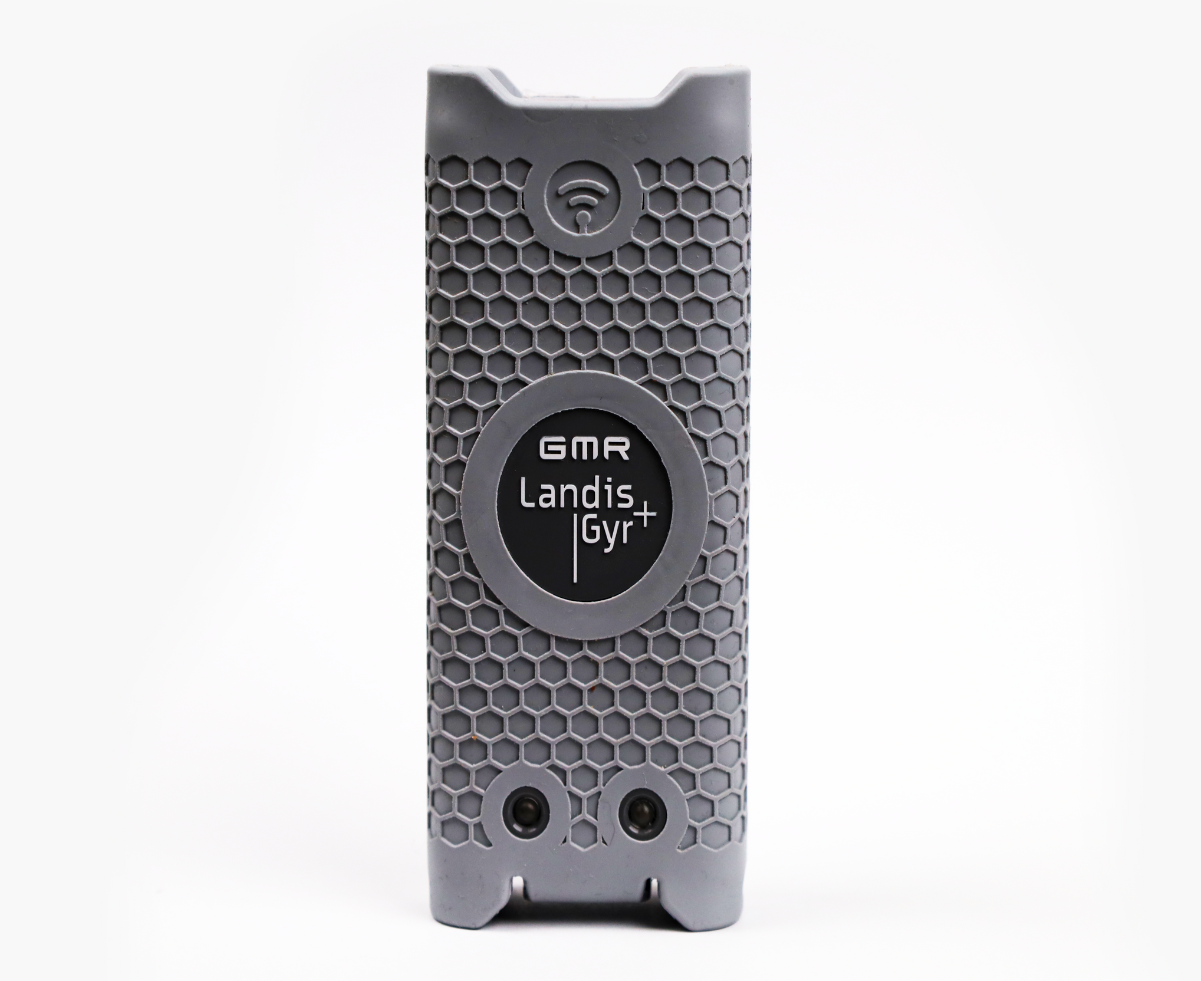

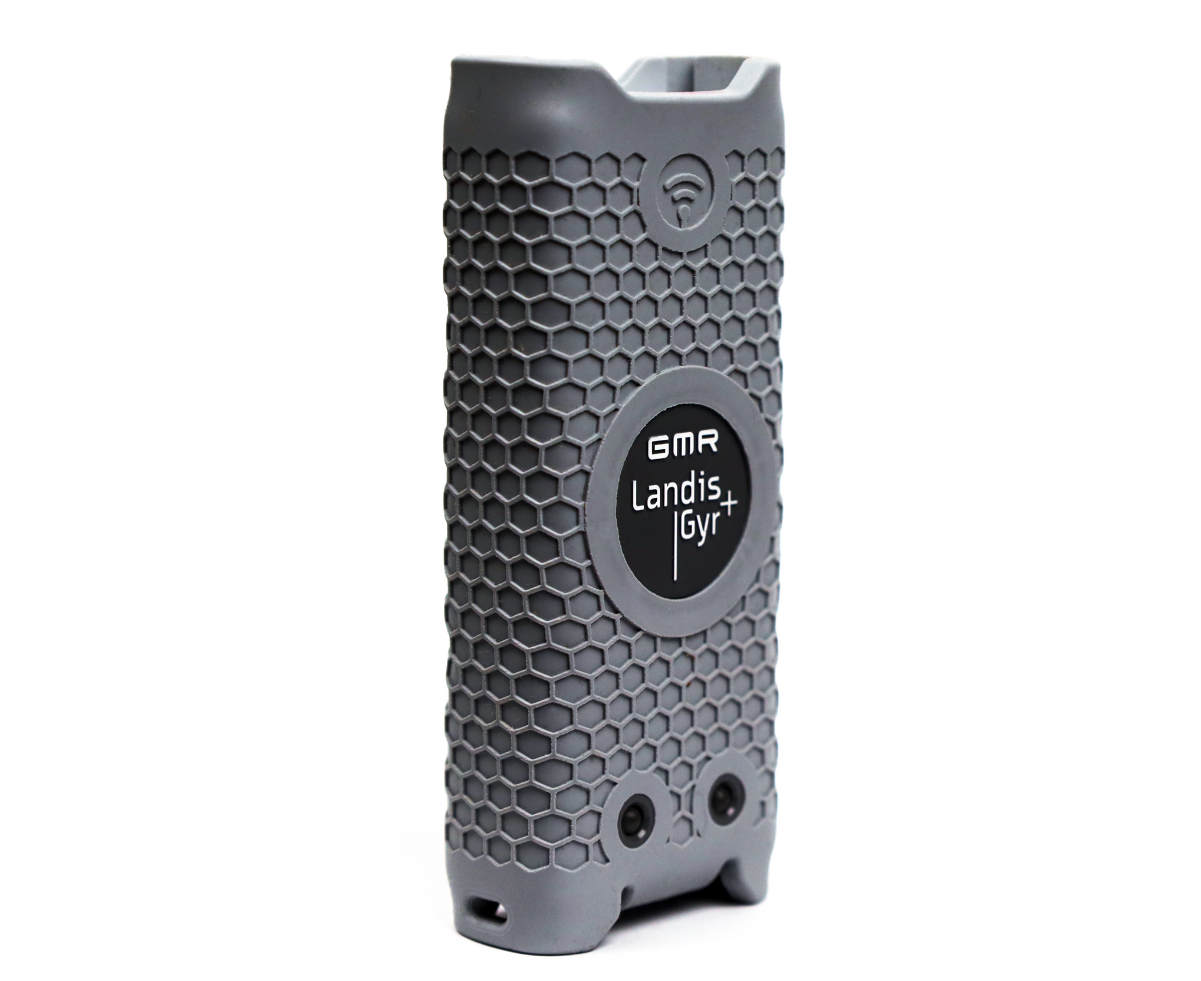

The Landis+Gyr Gridstream Connect Mobile Radio (GMR) is a field tool device that replaces the Comms Adapter to enable communication with RF Mesh, Mesh IP, and Wi-SUN devices. Read more
Description:
Enabling Communications with RF Mesh, Mesh IP, and Wi-SUN Devices
The Landis+Gyr Gridstream Connect Mobile Radio (GMR) is a field tool device that replaces the Comms Adapter to enable communication with RF Mesh, Mesh IP, and Wi-SUN devices. The GMR uses the standard USB-C serial cable to connect to a user’s PC. Two-way communication with the GMR provides the capability to transmit and receive data from AMI endpoints. The product is low power mode-capable which helps connect to modules in single channel mode. The GMR contains Landis+Gyr's Network Node, which is a fully functional, Network Interface Card (NIC) that is mPCIe standard-enabled for simple network and sensor device integration.
The GMR requires Landis+Gyr’s TechStudio software. Using Landis+Gyr’s Gridstream Connect IoT platform, TechStudio provides commissioning, testing, and modification capability for RF network devices, including street light controllers, electric meters, gas/water modules, and line sensors, all from a single software platform.
GMR connectivity models are available to support the following protocols:
| Part Number | Network Interface Card | Communications Protocol | Modulation |
| T1501 | Series 5 | RF Mesh (L+G Proprietary) | FSK |
| T1651 | Series 6 | Mesh IP (IEEE802.15.4g RPL IP-based) | FSK |
| T1661 | Series 6 | Wi-SUN FAN 1.1 (Wi-SUN Standard) | FSK, OFDM |
| Note: The GMR is not applicable for LTE-M networks. | |||
Features
- Supports RF Mesh, Mesh IP, and Wi-SUN protocols
- Supports single-channel mode connection to modules
- Uses industry-standard USB-C interface
- Powered directly from PC
Availability
- Americas
